nanoscale sensor

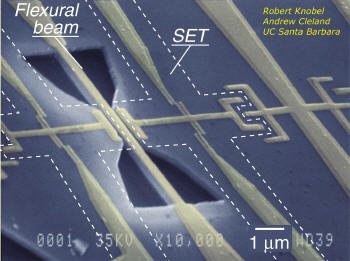

A scanning electron microscope image of a device similar to that used in the experiment. The vibrating beam is in the centre, flanked by two single electron transistors used to measure its displacement. The background is the gallium arsenide wafer and the yellow is the aluminium metal which forms the transistor and electrodes (photo and text: R Knobel and A Cleland 2003)
