Intense X-rays expose Alzheimer’s disease
Jun 30, 2009 3 comments
One way to assess a drug’s effectiveness is to image the changes that it produces in the tissue of patients. But this is very challenging in the case of Alzheimer’s disease, because conventional tools such as magnetic resonance imaging cannot resolve the micrometer-sized changes in the brain that are associated with the illness.
However, these tiny features can now be identified with a version of computed tomography called diffraction-enhanced imaging — according to researchers at Brookhaven National Laboratory and the State University of New York (SUNY), Stony Brook. What’s more, this partnership says that its technique has the potential to deliver early diagnosis of Alzheimer’s disease.
Alzheimer’s disease, a disorder causing dementia in tens of millions of people worldwide, is caused by the build-up of dense areas of protein in the brain. These “plaques” contain a protein called amyloid beta and are just 5-200 μm in size.
Finding individual plaques
The US team identified individual amyloid beta plaques in a mouse brain with the diffraction-enhanced imaging technique that they first developed in 1995. These plaques have previously been observed with the same technique by Japanese researchers, who reported their results in 2006. However, on that occasion the brain tissue was dissected rather than being in a whole brain.

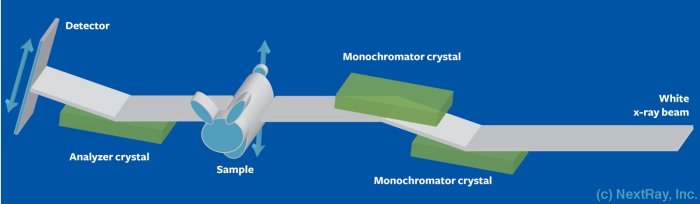

The diffraction enhanced imaging tool used by the US researchers employs X-rays generated from Brookhaven’s National Synchrotron Light Source (NSLS) synchrotron source. As this monochromatic beam passes through the sample, X-rays scatter and refract at different angles, depending on the tissue’s characteristics. These differences are amplified with an analyzer crystal.
This crystal has a very narrow reflectivity profile and it produces a peak reflectance for X-rays unaffected by transmission through the sample. For deviations of just a few microradians, reflectivity drops to nearly zero. Thanks to the steep slope associated with this reflectivity profile, angular changes in the transmitted beam are converted into changes in intensity that are recorded on a detector array. By repeating this process over a wide variety of incident angles, it is possible to construct a 3D image.
Mapping changes in density
“With our technique, the 3D data set represents a map of the changes in density,” explains team member Dean Connor, a former researcher at Brookhaven who has recently moved to the University of North Carolina. “Anywhere where there is an interface between two materials, there will be a dark or light spot in the 3D data,” he explains.
The superior resolving power of team’s diffraction enhanced imaging tool stems from a thousand-fold increase in the intensity of the X-ray beam compared to that used for conventional tomography. “While diffraction-enhanced imaging does not have improved spatial resolution compared to normal X-ray imaging, it does generate significantly more contrast for soft tissue features,” says Connor. “This allows smaller soft tissue features to be seen.”
Using their imaging tool, Connor and his co-workers have identified amyloid beta plaques with a diameter of less than 30 μm. These had a difference in density from the surrounding brain tissue of just 2%.
The team compared these results with those that it obtained by staining slices of brain tissue, and identifying the plaques under a microscope. Good agreement was observed when comparing the size distribution of the plaques, and their density.
Alternative imaging techniques
Magnetic resonance imaging (MRI) can also image tissue, but its produces an inferior spatial resolution. “While MRI can allow for exquisite soft tissue contrast, even high-field, high-resolution small-animal imaging systems have a resolution of 20-30 μm,” explains Connor. In comparison, diffraction enhanced imaging has a theoretical resolution of just 2 μm, although this would require a dose that exceeds the limit that can be given to patient.
However, a synchrotron source is a large and very expensive facility not suitable for clinical use. Connor points out that if diffraction enhanced imaging is to screen humans for Alzheimer’s disease, then it will have to be implemented with a conventional X-ray tube. A spin-off company called NextRay is working towards this.
The Brookhaven-SUNY partnership also want to improve to the imaging system, so that it can reveal amyloid beta plaques through a mouse skull. In addition, this team wants to develop new high-throughput, high-resolution imaging system that will be implemented at NSLS II, which is being built at Brookhaven and should offer a much brighter X-ray beam by 2015.
Benefits and obstacles
Alessandro Olivo, a researcher at University College London with expertise in computed tomography, is very supportive of the work of Connor and his colleagues: “X-ray images have properties — primarily of resolution — which are not accessible by any other imaging technique.”
However, he points out that there are many obstacles to overcome before X-rays can be used to screen humans for Alzheimer’s disease.
This includes the development of a new generation of detectors that combine high-resolution with high-efficiency, to ultimately limit the dose given to the patient. “This resolution level also poses a problem in terms of data volumes, and data analysis. This would have to be dealt with if a human brain is imagined, instead of that of a mouse.”
The research is published in the journal NeuroImage.
About the author
Richard Stevenson is a science and technology journalist based in the UK
